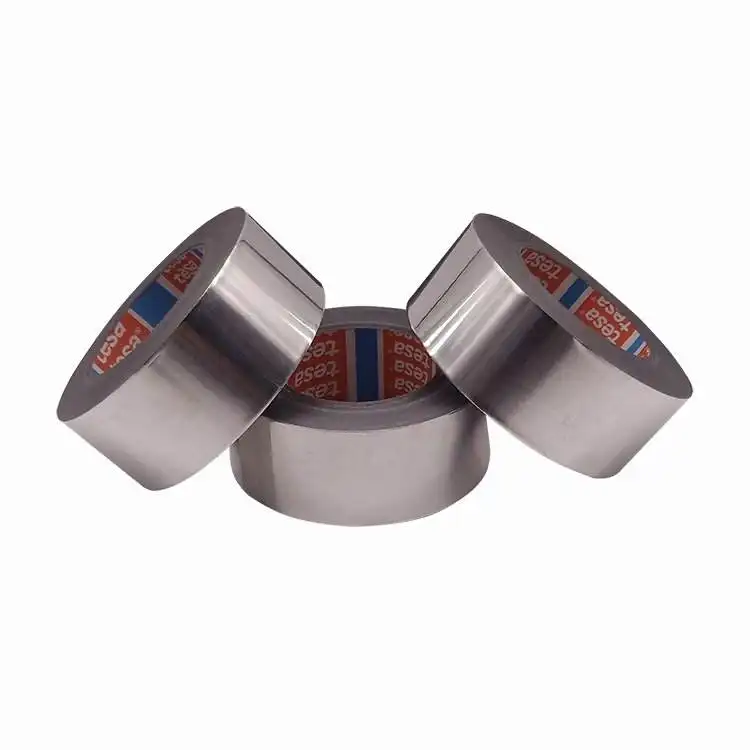

tesa 50565 Strong 50µm aluminium tape with and without liner

tesa 50565 is a strong aluminium tape, based on a 50µm aluminium foil and an acrylic adhesive.

Product Specification:
  • Name : tesa 50565 Strong 50µm aluminium tape
  • Color : sliver
  • Thickness : 0.05mm
INQUIRY NOW
Product Details

tesa 50565 Strong 50µm aluminium tape with and without liner

Product description

tesa® 50565 is a strong aluminium tape, based on a 50µm aluminium foil and an acrylic adhesive.

It is mainly used in the appliance industry and also for a wide range of other applications. The

production version PV1 comes with paper liner.

Product Features

  • Moisture resistant and vapor barrier
  • Thermally conductive and ageing-resistant product design
  • Available without liner (PV0) and with liner (PV1)
  • Flame retardant (according to UL510A)

Product Construction

Type of liner

paper
Backing material aluminium foil
Type of adhesive acrylic
Total thickness 90 µm
Color of liner white
Thickness of liner 65 µm

Properties / Performance Values

Suitable for die cutting yes
Abrasion resistance good
Elongation at break 8 %
Tensile strength 35 N/cm
Backing appearance (visual) reflective
Hand tearability good
Operation temperature from -40 °C
Operation temperature up to 160 °C
Water resistance very good



Application Fields

  • Mounting of cooling coils in refrigerator production
  • Sealing of ducts or joints of insulation material
  • Masking, protecting, repairing, closing
