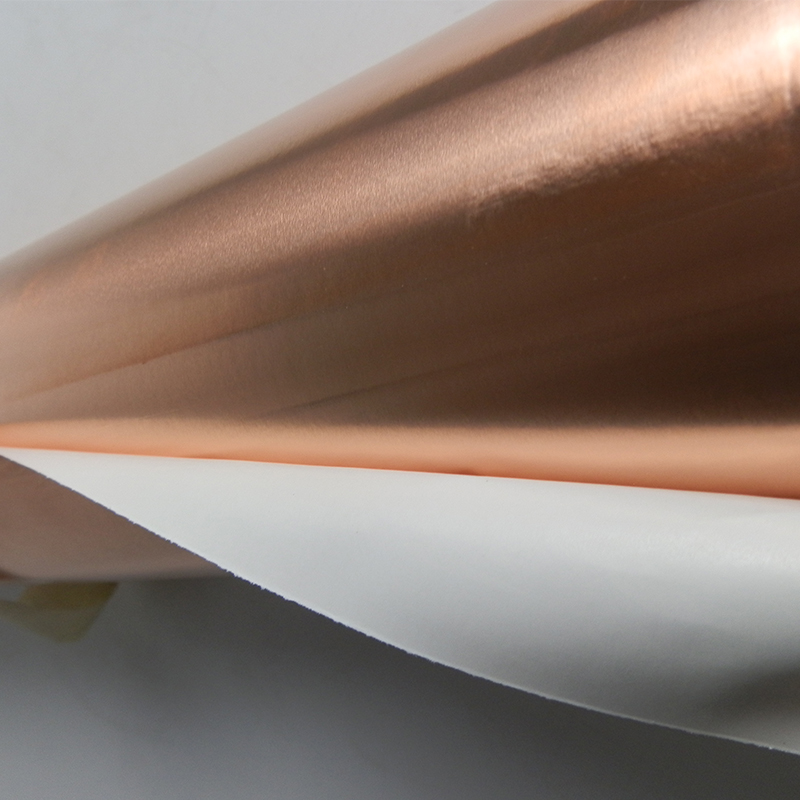

1.4-mil copper foil backing with conductive acrylic pressure-sensitive adhesive on both sides and a liner.
Product Specification:
These Machine accessories May you like

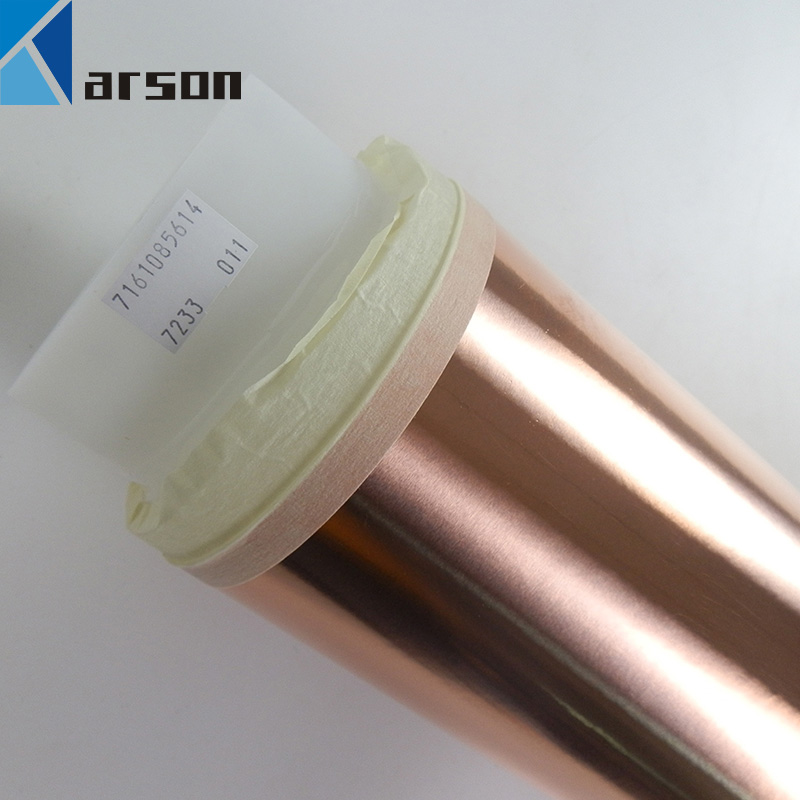

3M™ Copper Foil Shielding Tape 1181,1182 has a 1.4-mil copper foil backing with conductive acrylic pressure-sensitive adhesive on both sides and a liner. The 1182 tape with double-coated conductive adhesive makes an excellent conductive gasket.

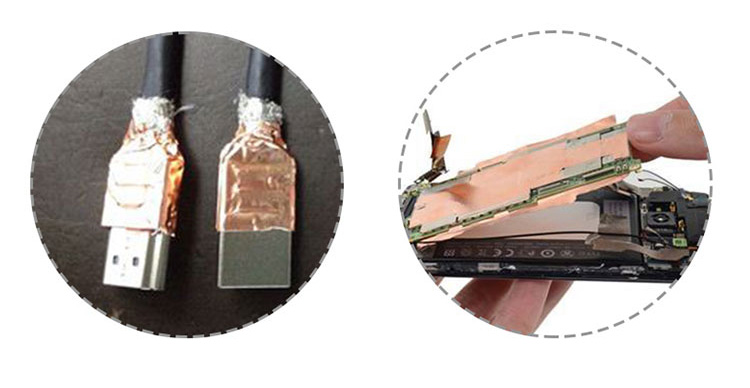

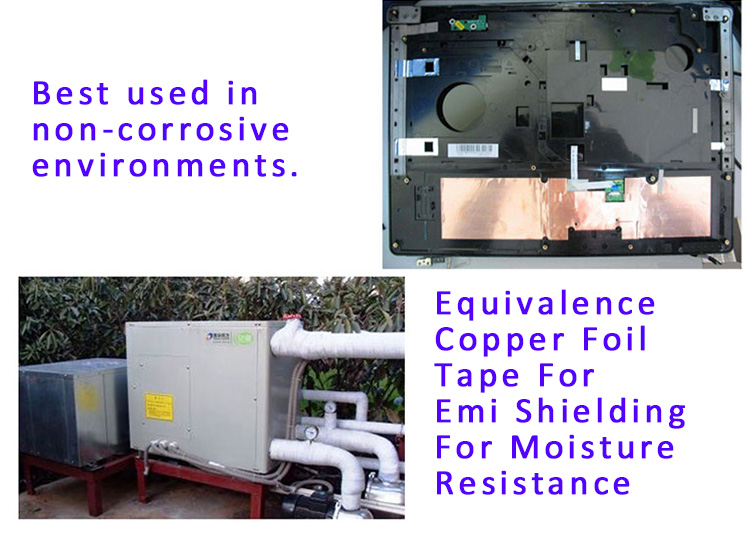

3M™ EMI Tin-Plated Copper Foil Shielding Tape 1183 is a 2.6 Mil tin-plated copper foil designed for applications requiring reliable point-to-point electrical contact, particularly EMI shielding, grounding and static charge draining.
|
Attribute Name |
3M 1181, Copper Foil Tape, EMI Shielding Tapes |
|
Adhesion to Steel oz/in (N/100 mm) |
35 (38) |
|
Adhesive Type |
Conductive Adhesive |
|
Agency Approvals |
Flame Retardant, UL Recognized |
|
Backing Material |
Foil, Copper, Flat |
|
Backing Thickness |
1.4 mil |
|
Breaking Strength |
25 lb/in |
|
Connection Resistance |
Good (0.001-0.005 ohm) |
|
Length |
18 Linear Yard |
|
Length (Metric) |
16.5 m |
|
Material |
Copper Foil |
|
Product Markets |
Electrical Equipment Manufacturing |
|
Product Type |
EMI Shielding Tape |
|
RoHS EU Comments |
RoHS 2011/65/EU compliant without exemption |
|
Shielding Effectiveness |
Good (70-85dB) |
|
Tape Type |
EMI Shielding Tapes for Equipment Manufacturing |
|
Thickness (Metric) |
0.09 mm |
