3M Electrical Tape 44
Product Specification:
These Machine accessories May you like

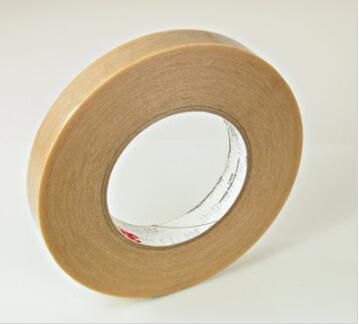

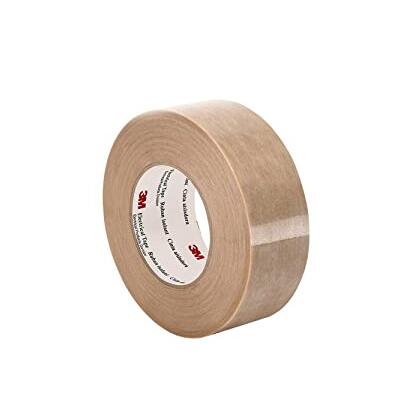

3M Electrical Tape 44, 1width x 90yd length (1 roll), Tan, Low-Halogen
| Adhesive Type | Thermosetting Rubber |
| Color | Brown, Transparent |
| Dielectric Strength | 5500 V |
| Compatible Material | Polyester , Rubber |
| Upper Temperature Rating | 262 degrees_fahrenheit |
| Model Number | 3M 44 |
3M Electrical Tape 44 is a low-halogen, combination polyester film/polyester web film coated with a rubber thermosetting pressure-sensitive adhesive.
This UL recognized conformable tape is puncture resistant with excellent electrical properties. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
3M 44 Applications
Used for stick-wound coils/transformers and in bobbin-wound coils for banding, anchoring, and insulating, and for protecting start wires, leads, terminal strips, insulation paper, end turns and connections in motors and transformers.
3M 44 Details
*The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
*Offers great electrical properties and is puncture-resistant
*Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
*For protecting start wires, leads, terminal strips and insulation paper
*Withstands a temperature range of 32 to 266 °F (0 to 130 °C) 3M 44
