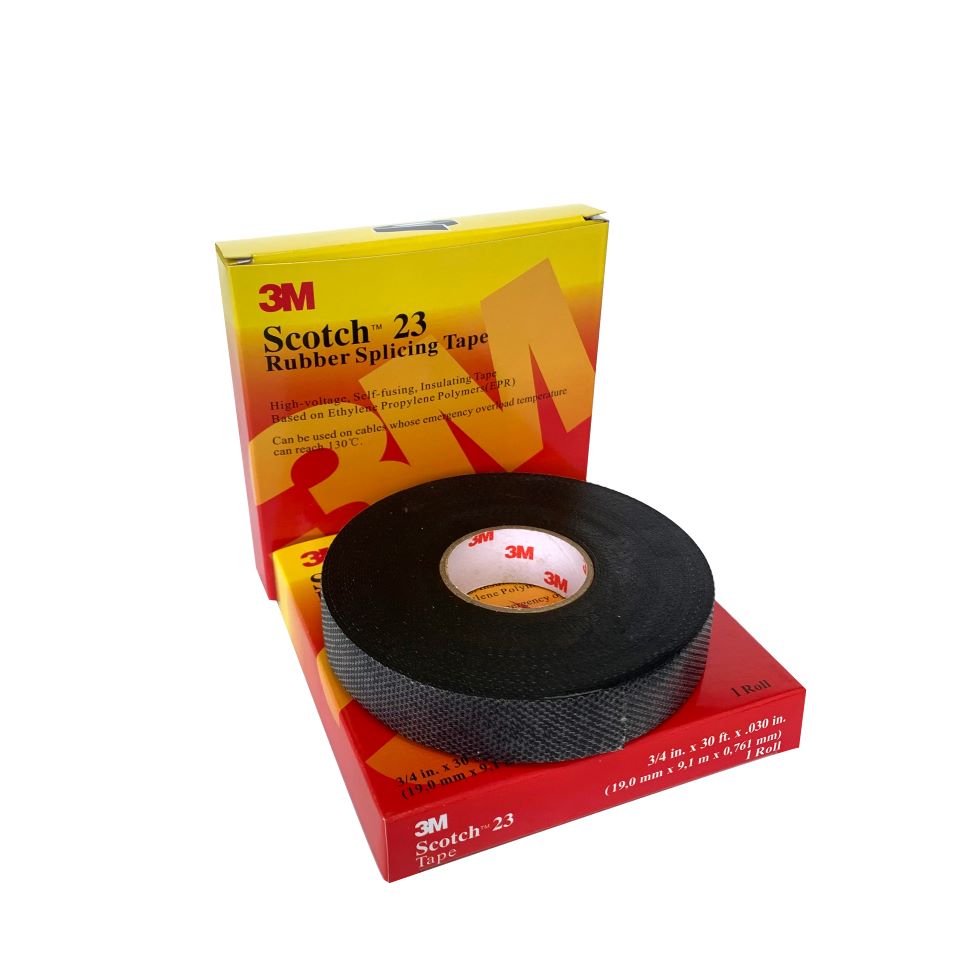

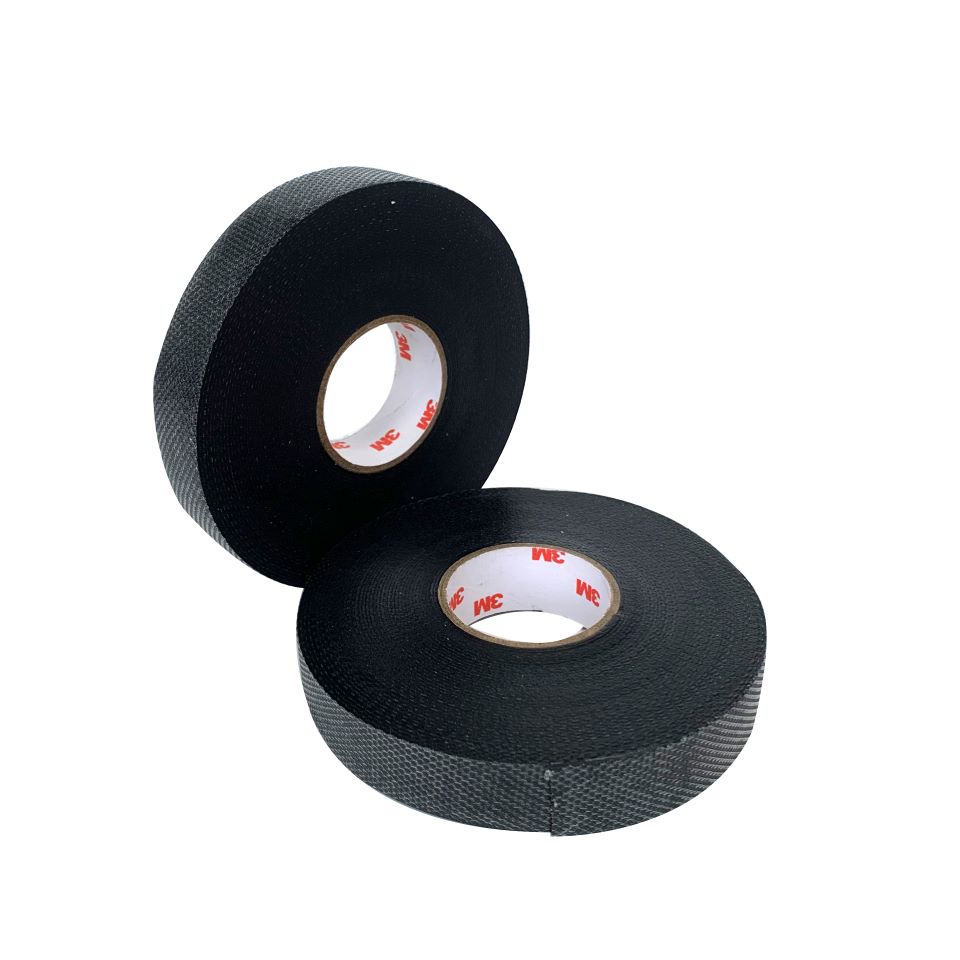

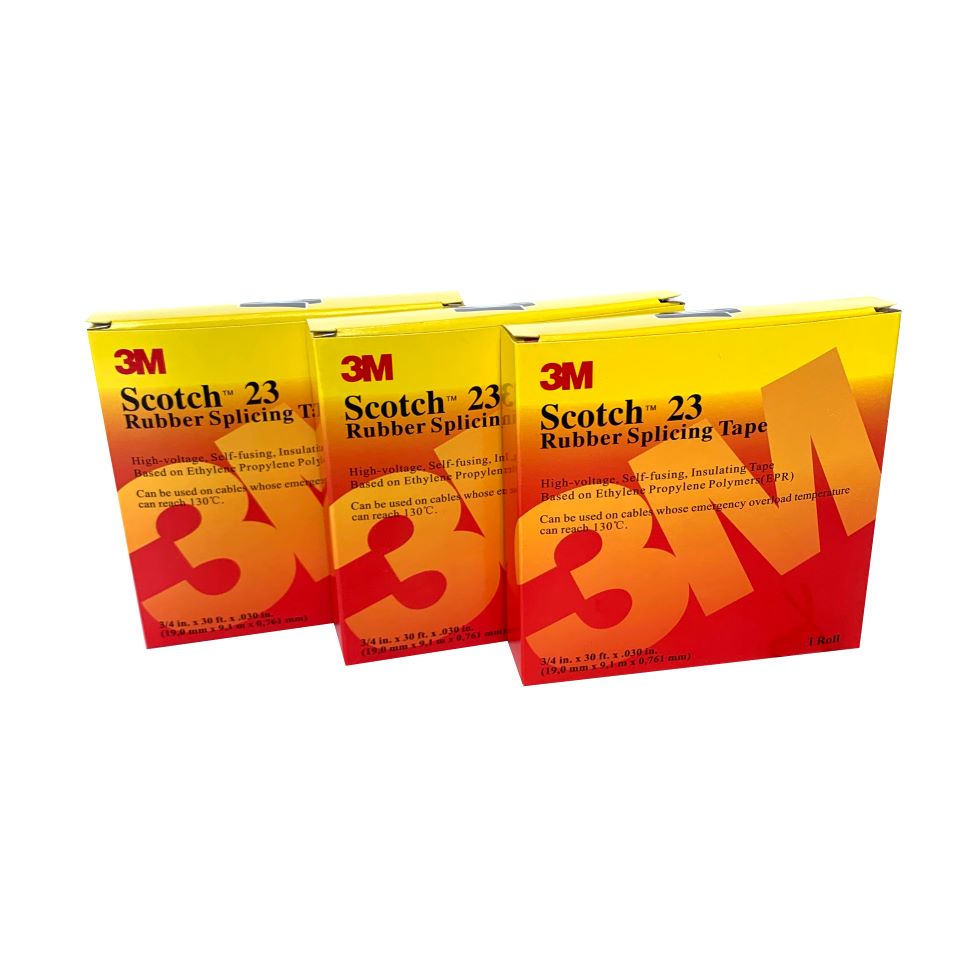

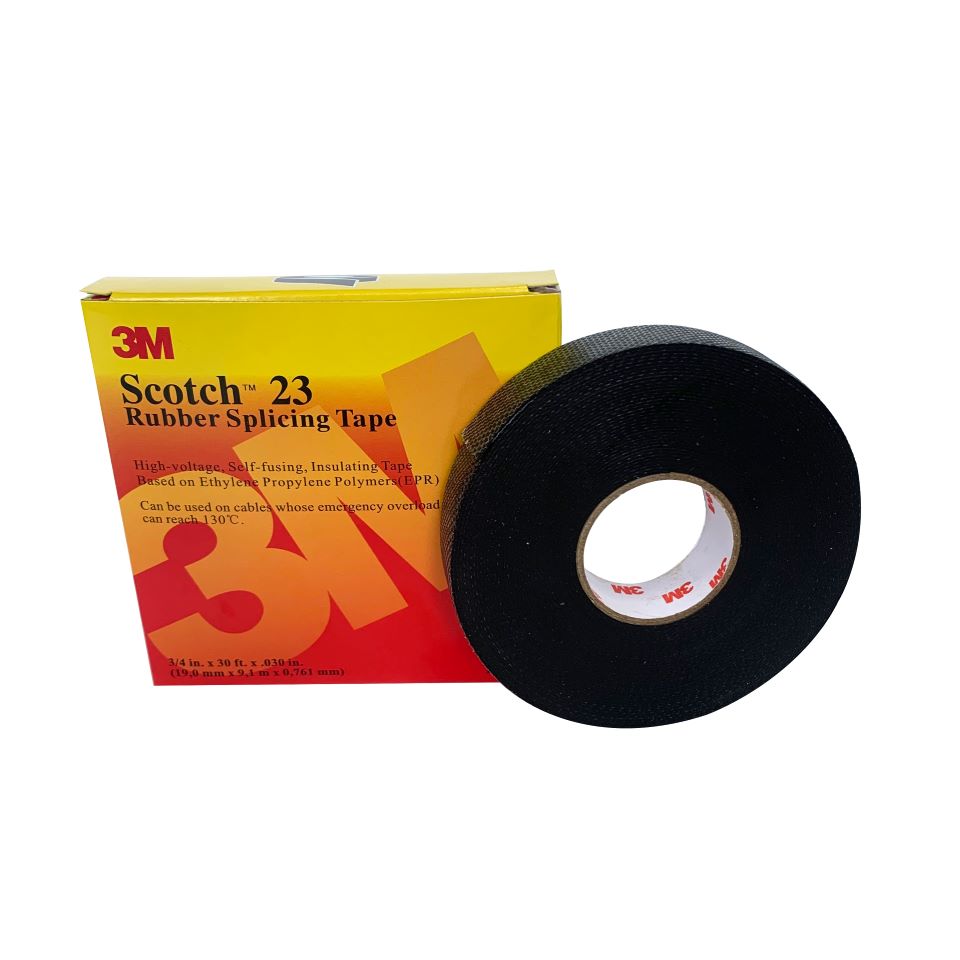

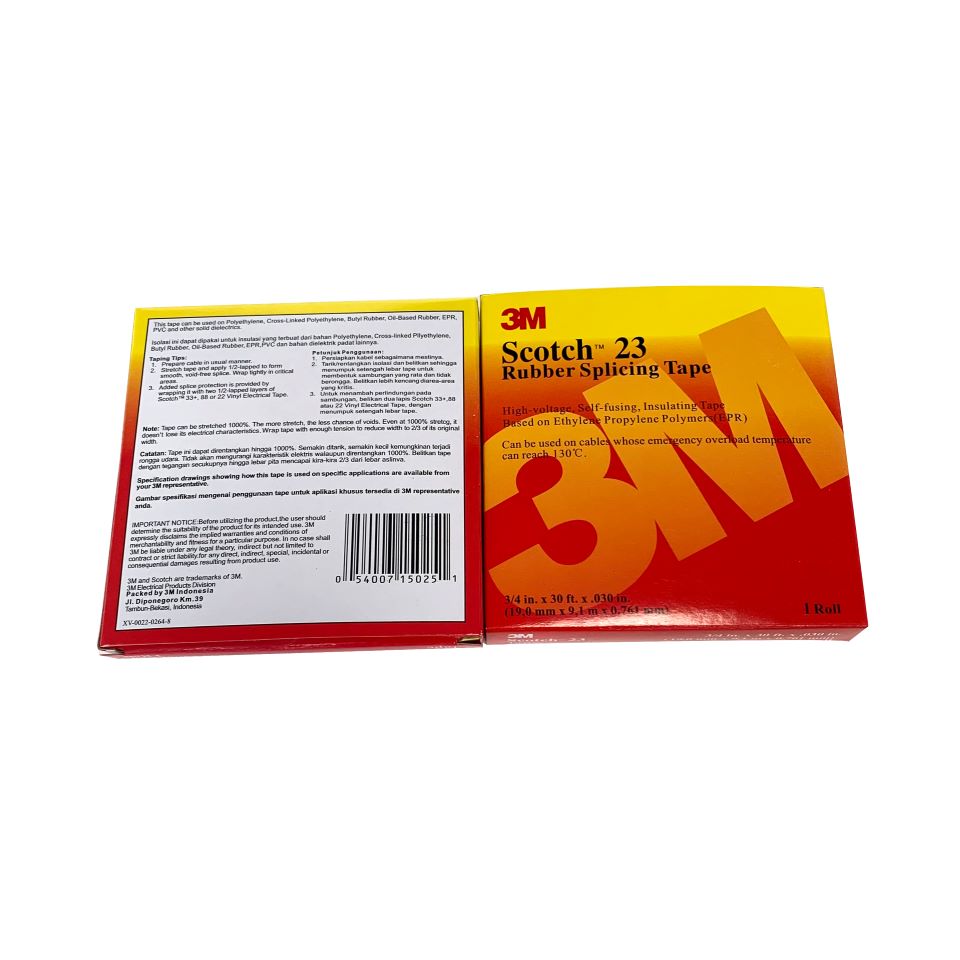

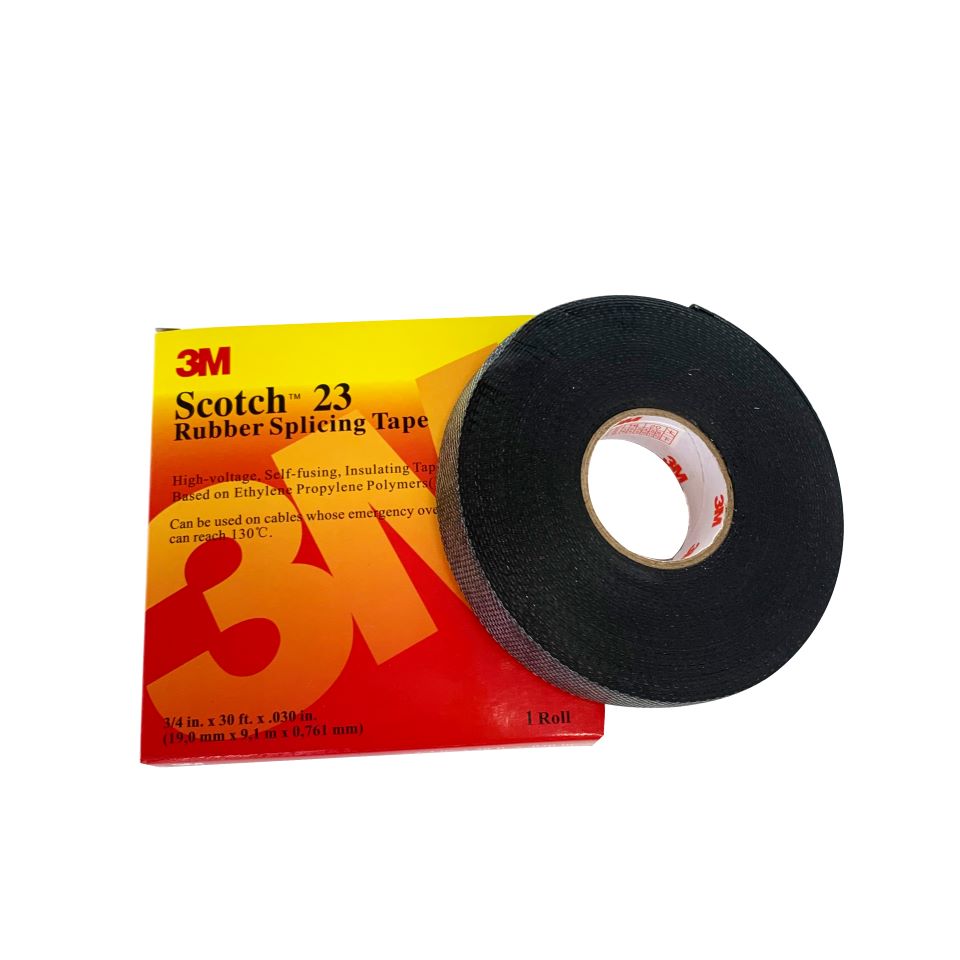

3M Scotch 23 Rubber Splicing Tape

High voltage electric tape from 600V to 69 kV

Product Specification:
  • Adhesive Material : Rubber Resin
  • Operating Temperature Range : 0 °C to 90 °C
  • Color : Black
  • Voltage : 69 kV
  • UV Resistant : No
  • Size : 19mm x 9.1m x 0.76mm
INQUIRY NOW
Product Details

1. Rubber resin provides excellent adherence to irregular surfaces

2. Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables

3. Suitable for jacketing high-voltage splices and terminations

Attribute Name

Value

Adhesion to Steel

5,5 N/cm

Adhesive Material

Rubber Resin, Thermosetting Rubber

Applications

Electrical Maintenance, Insulation

Breaking Strength

25 N/cm, 8 lb/in

Color

Black, Cream

Dielectric Strength (V/mil)

800, 800 V/mil

Emergency Overload Temperature (Celsius)

130°C

Insulated

Yes

Insulation Resistance

> 10^6 megohms

Length

20 Linear Foot, 30 Linear Foot

Material

EPR with Liner

Maximum Operating Temperature (Celsius)

90 Degree Celsius

Maximum Operating Temperature (Fahrenheit)

194 Degree Fahrenheit

Product Markets

Electrical Construction, Electrical MRO, Power Distribution

Product Type

Rubber and Splicing Tapes

RoHS EU Comments

RoHS 2011/65/EU compliant without exemption

Shelf Life

5 Year

Solution for

Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing

Suitable for High Voltage

Yes

Tape Color

Black

Voltage

69 kV

Voltage Application

All voltage classes

3m scotch

3M Scotch 23 Rubber Splicing Tape High quality and low cost, welcome to quote.
