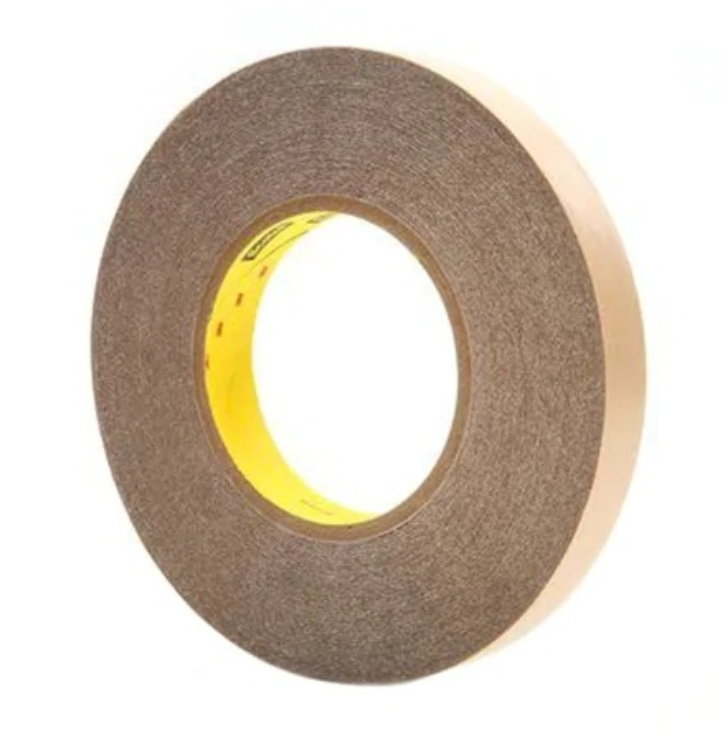

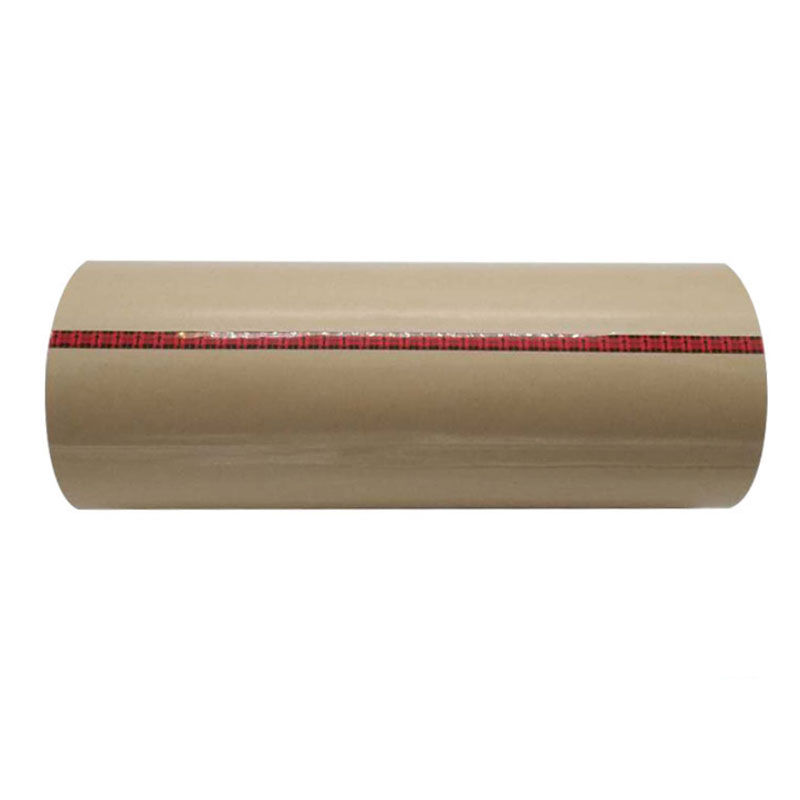

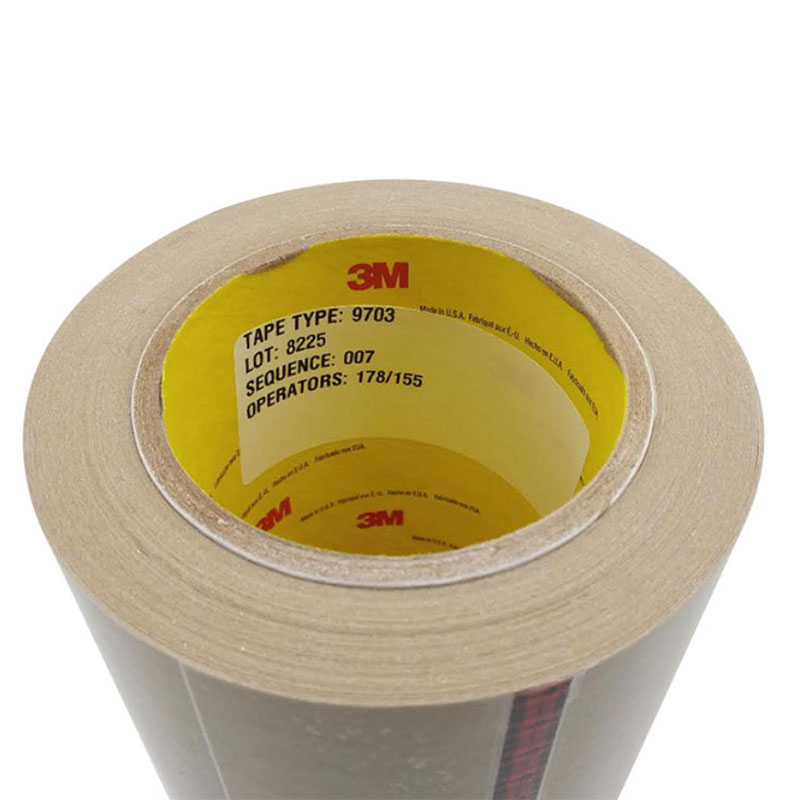

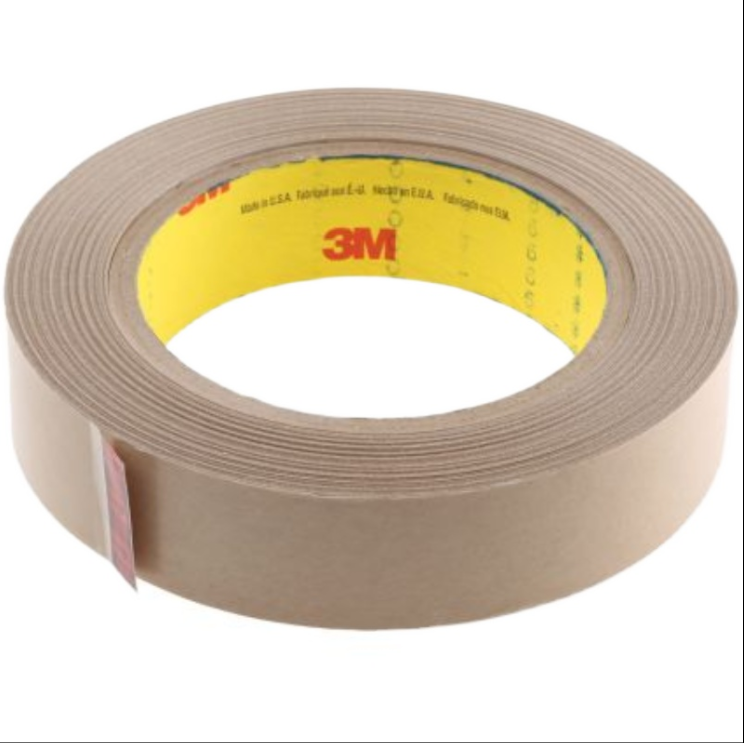

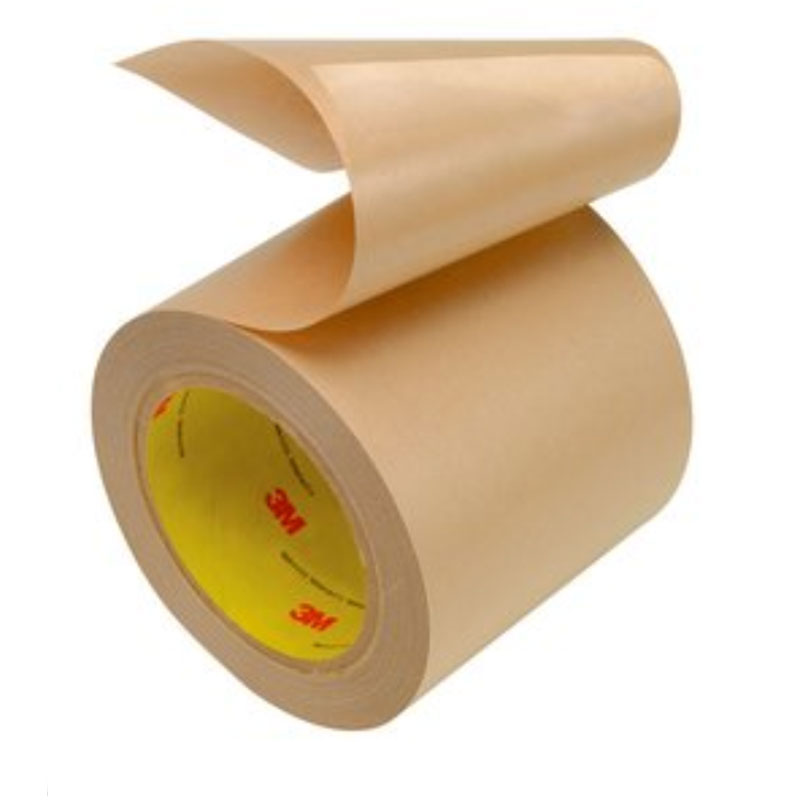

3M 9703 Electrically Conductive Adhesive Transfer Tape
Product Specification:
These Machine accessories May you like
3M 9703 Electrically Conductive Adhesive Transfer Tape
| Model Name | 3M 9703 |
| Material | Polyester , Stainless Steel , Aluminum , Copper , Polyimide |
| Compatible Material | Metal |
| Color | Clear |
| Thickness | 2 mil (50 µm) |
| Brand | 3M |
Details
1. Anisotropic (z-axis) electrical conductivity
2. Electrically connects and mechanically bonds medium pitch flex circuits with other flex circuits, pcb or lcd screens
3. Adheres to EMI/RFI substrates: aluminum, stainless steel and smooth gasket material
4. Low contact resistance for excellent EMI performance
5. Commonly used for flex circuit splicing, keyboard manufaturing and LCD assembly
3M Electrically Conductive Adhesive Transfer Tape 9703 has very high electrical conductivity, which provides low resistance for small contact areas and high frequencies. The anisotropic conductivity enables Z-axis interconnects without shorting adjacent circuitry. This tape provides robust protection against EMI in a range of market segments such as consumer electronics, automotive, medical devices, communication infrastructure, and especially aerospace & defense electronics, with requirements for low outgassing.
Recommended Applications:
Electrical connectivity to medium pitch flexible circuits and PCBs
Flex circuit to flex circuit interconnection
PCB/flex/chassis grounding
EMI shield & gasket attachment
Electrostatic discharge (ESD)
