3M Double Side Tape Slitting

3M High Temperature Silicone Features Strong Double Coated Tape 9731

wide can be choose from 1mm-1219mm

Product Specification:
  • Name : 3M Double Coated Tape 9731
  • Size : log roll 1219mm x 33meter
  • Color : Clear
INQUIRY NOW
Product Details

High Temperature Silicone Features Strong 3M Double Coated Tape 9731

Specifications

Back-Side Adhesive Thickness

2.9 mil

Back-Side Adhesive Type

Silicone Silicone Strong Tape

Carrier Material

Polyester Film (PET)

Carrier Thickness

0.095 mil

Color

Clear Silicone Strong Tape

Indoor/Outdoor

Both

Industries

Aerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military & Government, Oil and Gas, Signage, Specialty Vehicle, Transportation

Length (Metric)

32.91 m

Maximum Operating Temperature (Fahrenheit)

250 Degree Fahrenheit

Minimum Operating Temperature (Fahrenheit)

-40 Degree Fahrenheit 3M 9731

Position

Best 3M 9731

Primary Liner

58# Polycoated Kraft Paper (PCK) 3M 9731

Primary Liner Color

Tan 3M 9731

Primary Liner Thickness

4.2 mil 3M 9731

Secondary Liner

Polyester Film (PET)

Secondary Liner Color

Clear 3M 9731

Shear Strength at 72 Degrees F (22 Degrees C)

High 3M 9731

Substrate 1

Foam, LSE Plastics, Metal, Plastic

Substrate 2

Foam, HSE Plastics and Glass, LSE Plastics, Metal 3M 9731

Substrates

Foam, Glass, HSE Plastics and Glass, LSE Plastics, Metal, Paint, Silicone Gaskets, Smooth 3M 9731

Thickness (Metric)

0.14 mm 3M 9731

3M 9731

Details High Temperature Silicone Features 3M Double Coated Tape 9731

  • High temperature and medium solvent resistance and high adhesion to HSE
  • and LSE substrates 3M 9731
  • Acrylic has the ability to bond a variety of surfaces 3M 9731
  • Silicone features strong holding power to various silicone surfaces
  • Electronics, general industrial, appliances, medical devices, power tools,
  • automotive, transportation, aircraft, and airplane
  • Adhering, joining, affixing, bonding, mounting, holding, laminating, and attaching

3M Double Coated Tape 9731 is a 0.14 mm double sided tape on a clear polyester carrier 3M 9731

with a firm silicone adhesive on one side and a 3M Hi Performance Acrylic Adhesive 350

on the other side. The tape has a 0.07 mm polyester film liner on the silicone side and  3M 9731

a 0.17 mm polycoated kraft paper on the acrylic side. 3M 9731

Silicone Strong Tape

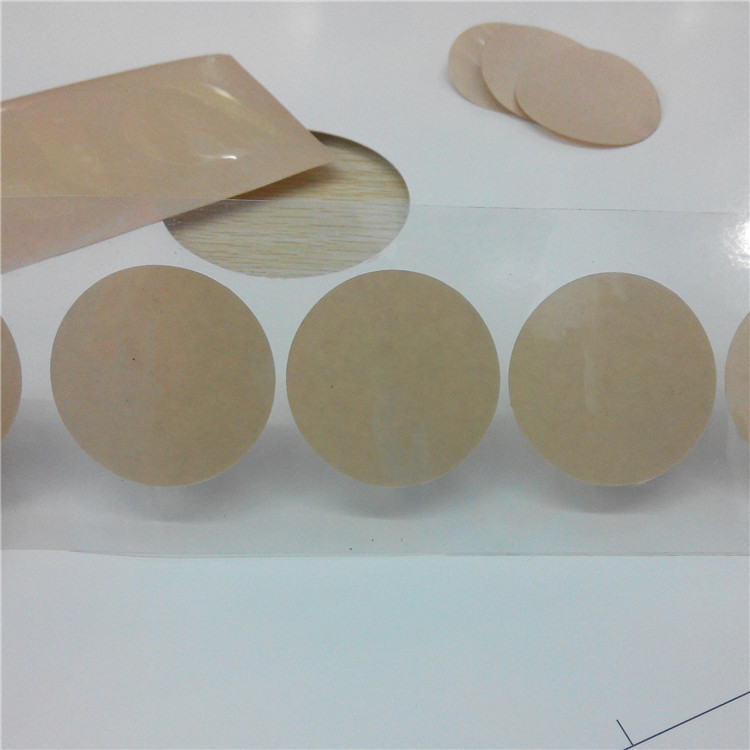

Can but cut shape follow drawing by request. 3M 9731

Silicone Strong Tape
